Security Fencing – Wire View High Density – Aperture 76mm x 12.7mm

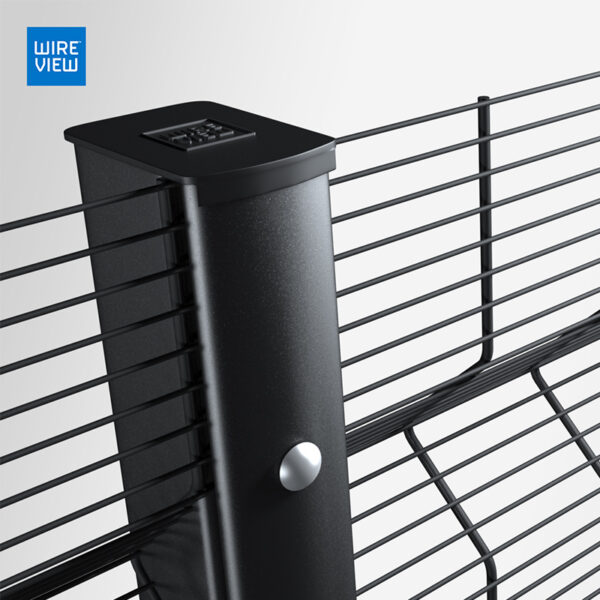

Product Overview The Wireview® High Density System is a premium, maximum-security perimeter fencing solution engineered to safeguard critical infrastructure and high-risk zones. Featuring a highly restrictive 76mm x 12.7mm mesh pattern, this professional anti-climb barrier combines a heavy-duty 4mm vertical wire line with a streamlined 3mm horizontal wire line. The result is an tightly woven profile that denies all finger or toe holds, rendering scaling or cutting with conventional tools virtually impossible. Technical Specifications Aperture Size 76mm × 12.7mm (True Anti-Climb Profile) Vertical Wire Diameter 4mm thickness Horizontal Wire Diameter 3mm thickness Mesh Configuration High Density (Maximum penetration delay) Coating Finish Options Premium Heavy Galvanized / Fusionguard® Thermoplastic Primary Applications Military installations, data centers, correctional facilities, and high-risk commercial zones Key Benefits ✔ Ultimate Anti-Climb Profile: The ultra-dense 12.7mm spacing completely eliminates finger holds, forcing relying intruders to find alternative entries. ✔ Anti-Cut Architecture: Tight mesh geometry blocks standard bolt cutters or manual tools from gaining the necessary physical leverage to cut the grid. ✔ Optimized Surveillance Path: The thin, high-tensile 3mm horizontal wire design maximizes visibility through the fence line, ensuring crisp CCTV clarity. Installation Procedure 1 Preparation Survey and systematically mark the targeted perimeter lines to establish correct level alignments. Ensure the underlying terrain installation path is cleared of loose debris. 2 Post Installation Excavate post anchor cavities using calculated mathematical intervals configured to the dimensions of the high-density panels. Align posts vertically, pour in concrete, and allow curing. 3 Panel Attachment Position Wireview® high-density mesh panels straight between support posts. Secure components using heavy-duty tamper-proof brackets, clamp bars, or spider clips to ensure complete perimeter system integrity. 4 Finishing & Quality Check Audit the final tensioning parameters and plumb-lines across the length of the system. Verify overall build alignment to guarantee stable, maximum-security operation across the property lifetime.
