Security Fencing – Wire View- ALL FOR – Aperture 100mm x 50mm

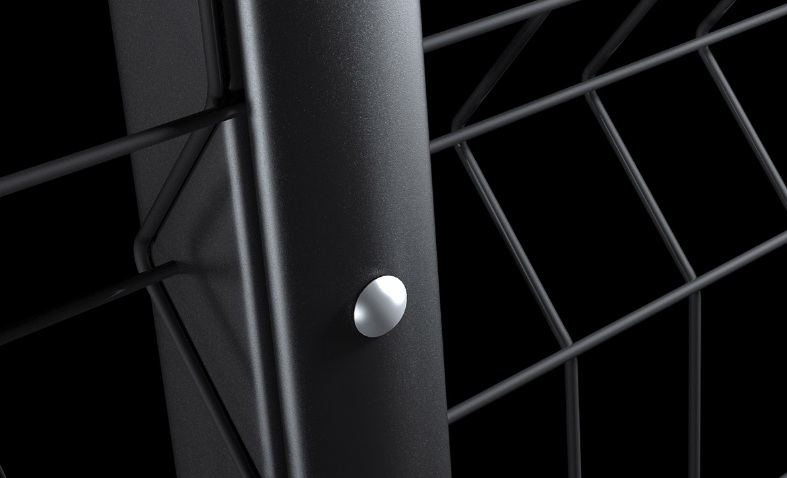

Product Overview The Wireview® 100 System is a high-performance perimeter security fencing solution engineered for maximum area protection. Combining structural rigidity with excellent transparent visibility, it functions as a highly durable perimeter barrier that delivers a robust defence while keeping a sleek, unobtrusive landscape profile optimized for modern surveillance setups. Technical Specifications Aperture Size 100mm × 50mm Vertical Wire Diameter 3mm thickness Horizontal Wire Diameter 4mm thickness Tensile Wire Strength Minimum 500 MPA Coating Options Premium Galvanized and Fusionguard® Thermoplastic Security Infrastructure Compatible with spike toppings & tamper-proof post fixtures Key Benefits ✔ Anti-Climb & Anti-Cut: Tightly arranged high-tensile wire patterns make cutting and climbing with conventional tools extremely difficult. ✔ CCTV Optimised: Clear, transparent lines of sight maximize property security layout tracking and camera coverage. ✔ 25-Year Maintenance Free: Advanced uniform coating technology options preserve structural appearance over an extended lifecycle. Installation Procedure 1 Preparation Survey and systematically mark the targeted perimeter to establish correct line alignments. Ensure the underlying installation terrain is thoroughly cleared of debris and levelled. 2 Post Installation Excavate post anchor cavities using targeted mathematical intervals matching specific panel dimensions. Set posts vertically straight using a spirit level, pour in commercial concrete, and allow a proper curing period. 3 Panel Attachment Accurately space and balance Wireview® mesh panels straight between security posts. Fasten components using specialized tamper-proof brackets, flush plates, or structural security shear nuts to eliminate penetration risks. 4 Finishing Touches & Quality Check Audit the final tensioning parameters and structural plumb-lines across the length of the system. Integrate heavy-duty matching access gates where needed and verify overall build alignment to ensure long-term stability.
